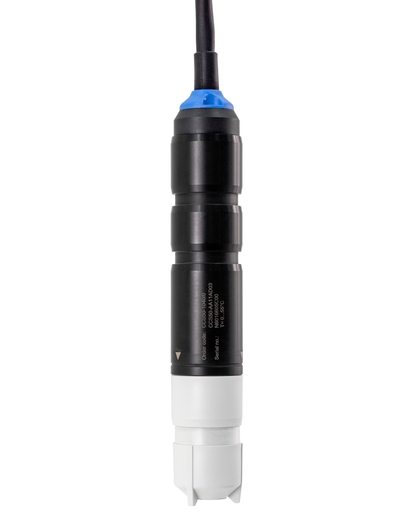

The CCS50 chlorine dioxide sensor is robust and low-maintenance. It quickly provides stable measured values for water, process water and utility applications. The sensor ensures an efficient disinfection process even at minimum flow, achieving the highest water quality and safety, avoiding chlorine dioxide overdosing or ensuring that beverage plants and reverse osmosis processes are free of ClO2. The CCS50 analog chlorine dioxide sensor provides continuous measured values at the measuring point.
Benefits
Fast response (t90 < 15 seconds) with highly accurate display of the process status, enabling timely action in response to process changes and efficient process control.
Higher process safety: precise, long-term stable measurement enables permanent process monitoring and flexible adjustment of the disinfectant concentration as required.
Flexible installation: the sensor can be installed in the CCA151 and CCA250 flow-through holders or in an immersion holder. Measurement is independent of flow at flow rates above 5 l/h (CCA151), 30 l/h (CCA250) or 15 cm/s (immersion).
The fluorescence sensor is low-maintenance and significantly reduces the operating costs of the measuring point compared with colorimetric measuring systems.
Used together with the Liquisys chlorine transmitter, it provides continuous analog chlorine dioxide measured values at the measuring point.
Applications
The CCS50 chlorine dioxide sensor meets the requirements of skid manufacturers and end users. It reliably measures:
Drinking water, ensuring complete disinfection
Cooling systems or cooling towers, preventing pathogen growth
Wash water for bagged vegetables and salads, ensuring food quality
Beverage plants, ensuring the absence of chlorine dioxide
E+H Product Model Configuration Tool
Please enter the product model to configure
Product comparison
Please enter the product models to compare in the fields below; up to three products can be compared
Technical documentation
Technical data
Documents/Manuals/Software
Accessories/Spare parts
A
Source: Endress+Hauserpublic information from the website
Technical Data
CompareDisinfection
| Measuring Principle | Chlorine dioxide |
| Application | Guarantees reliable disinfection in drinking water Prevents the growth of biofilms and pathogens in cooling water Ensures food quality Ensures the absence or presence of chlorine dioxide in Utilities |
| Characteristic | Amperometric measurement of dissolved chlorine dioxide |
| Measuring range | Trace: 0 to 5 mg/l ClO2 Standard: 0 to 20 mg/l ClO2 |
| Measuring method | Closed, membrane covered measuring cell Reduction of chlordioxide at the cathode |
| Design | Closed amperometric 2-electrode measuring cell with PVDF membrane |
| Material | Sensor shaft: POM Membrane: PVDF Membrane cap: PVDF Sealing ring: FKM |
| Dimension | Diameter: 25 mm (0.98 inch) Length: 126 mm (4.96 inch) |
| Process temperature | 0 to 55 °C (32 to 130°F), non-freezing |
| Process pressure | Max.1 bar (max. 14.5 psi) |
| Temperature sensor | 10k NTC |
| Connection | Analog with fixed cable |
