Technical Data
ComparepH
| Measuring Principle | Potentiometric |
| Application | - special applications with high requirements with regard to accuracy and speed - rapid changing composition of media, highly clogging media, low conductivities. |
| Characteristic | - for lowest conductivity - diaphragm with defined electrolyte flow - can be subject to pressure to prevent clogging - gel-free refillable electrolyte - fast response time |
| Measuring range | pH 0-14 |
| Measuring principle | liquid-KCl with ceramic diaphragm |
| Design | - all shaft lengths with temperature sensor. |
| Material | glass / ceramic |
| Dimension | Diameter: 12mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm (4.68, 8.77, 14.04 and 16,57 inch) |
| Process temperature | max. 135°C (274°F) |
| Process pressure | max. 10bar (145psi) |
| Temperature sensor | Optional with integrated Pt100 |
| Ex certification | Simple operational equipment, no certification necessary. |
| Connection | TOP68 connection head |
| Ingress protection | IP 68 |
| Certificates, declarations and approvals | 3A |
Field of application

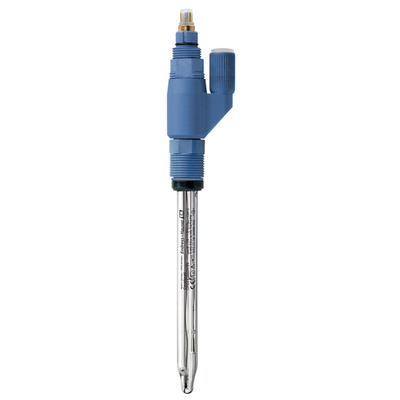

Ceraliquid CPS41 is the analog high performer for pH measurement in harsh chemical applications and media with low conductivity or a considerable content of organic solvents. The sensor is designed for fast response guaranteeing you high process safety even in applications with quickly changing medium compositions.
Media with very low conductivities or a considerable amount of organic solvents or alcohols and fast changing media:
Chemical industry
Power plants, e.g. boiler feed water
Life sciences, e.g. water for injection
With ATEX, FM and CSA approval for use in hazardous areas.
Benefits
Resistant to poisoning due to constant refilling of KCl bridge electrolyte and separate reference lead
Applicable at very low conductivities (= 0.1 µS/cm) thanks to liquid KCl electrolyte
Suitable for cleaning in place (CIP) and sterilization in place (SIP)
Perfectly suited for quickly changing media: Combination of liquid KCl electrolyte and ceramic diaphragm enables fast response time
pH:
| Measuring Principle | Potentiometric | |
| Application | - special applications with high requirements with regard to accuracy and speed - rapid changing composition of media, highly clogging media, low conductivities. | |
| Characteristic | - for lowest conductivity - diaphragm with defined electrolyte flow - can be subject to pressure to prevent clogging - gel-free refillable electrolyte - fast response time | |
| Measuring range | pH 0-14 | |
| Measuring principle | liquid-KCl with ceramic diaphragm | |
| Design | - all shaft lengths with temperature sensor. | |
| Material | glass / ceramic | |
| Dimension | Diameter: 12mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm (4.68, 8.77, 14.04 and 16,57 inch) |
|
| Process temperature | max. 135°C (274°F) | |
| Process pressure | max. 10bar (145psi) | |
| Temperature sensor | Optional with integrated Pt100 | |
| Ex certification | Simple operational equipment, no certification necessary. | |
| Connection | TOP68 connection head | |
| Ingress protection | IP 68 | |
| Additional certifications | 3A | |
