Technical Data
CompareConcentration
| Measuring Principle | Absorption |
| Application | Color measurement CIE Lab |
| Measuring range | L: 0 to 100 a: -150 to 100 b: -100 to 150 |
| Material | Measuring head: 1.4404/AISI316L Window: Sapphire O-rings: FFKM Gasket seal: PEEK |
| Process temperature | -20 to 60 °C (-4 to 140 °F) 60 to 140 °C (140 to 284 °F) with water cooling |
| Process pressure | 0.5 to 10 bar (7.3 to 145 psi) (absolute) |
| Ex certification | ATEX/IECEx II 1/2G Ex ia op is/db [ia Ga] IIC T6…T3 Ga/Gb |
| Ingress protection | IP 69 (NEMA 6P) |

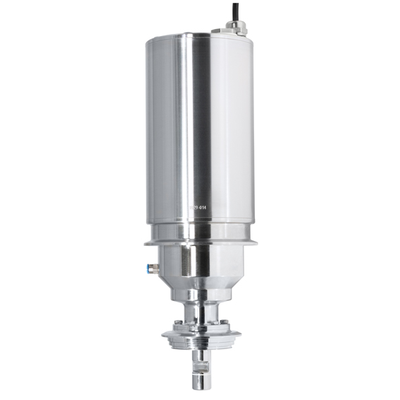

Memosens Wave CKI50 process spectrometer
Memosens Wave spectrometer for color measurement in the food and beverage, chemical and life sciences industries
Advantages
Compact design: the color of the entire spectrum can be determined with just one device.
Easy commissioning: with Memosens technology and Liquiline transmitters, installation is fast and simple. No calibration required, only the reference spectrum of the zero point needs to be recorded.
Powerful color measurement: highly repeatable and long-term reliable color measurement even in demanding process environments, thanks to its high resistance to water ingress, vibration and high temperatures.
Safe and efficient process control: the hygienic design ensures safe product production. By checking the color directly in the process, product losses and potential health risks to consumers can be prevented
Field of application
The Memosens Wave CKI50 is compactly designed and the spectrometer provides reliable, fast color control directly in the process. At the same time, the process spectrometer ensures that hygiene and material standards comply with the specifications of the food industry. Thanks to preset color models and connection to Liquiline transmitters, commissioning is very simple and measurement is stable.
Quality control: color deviations in the final product are caused by color changes in the raw materials. It is therefore crucial to identify them and initiate appropriate adjustments
Filling control: the increasing product diversity and higher production speeds bring the risk of incorrect bottling. Reliable and fast color detection is crucial.
Phase control: via color detection, the phase state in pipes can be quickly identified and product losses minimized, for example during product changeover or cleaning processes.
E+H product configurator
Please enter the product order code to configure
Product comparison
Please enter the order codes of the products you wish to compare in the fields below (up to three products)
Technical documentation
Technical data
Documents/Manuals/Software
Accessories/Spare parts
Source:Endress+Hauserpublic information from the website
