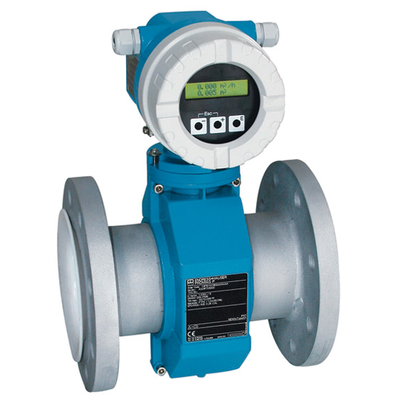

电磁流量计 10P
Technical Data
CompareLiquids
| Measuring Principle | Electromagnetic |
| Product headline | std_productprofile_product_usp_34716_1509006628. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures. |
| Sensor features | Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. Nominal diameter: max. DN 600 (24"). std_successorproducts_product_differentiating_tech_features_35249_1509523846. std_successorproducts_product_differentiating_tech_features_35251_1509523847. |
| Transmitter features | std_productprofile_product_benefits_34707_1508943674. std_productprofile_product_benefits_34705_1508943673. std_productprofile_product_benefits_34706_1508943673. 2-line display with push buttons. Device as compact or remote version. HART. |
| Nominal diameter range | DN 15 to 600 1/2" to 24" |
| Wetted materials | Liner: PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022) |
| Measured variables | Volume flow |
| Max. measurement error | Volume flow: ±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s) |
| Measuring range | 4 dm3/min to 9600 m3/h (0.5 gal/min to 44000 gal/min) |
| Max. process pressure | PN40 Cl. 300 JIS 20K AS 2129 Table E |
| Medium temperature range | –40 to +130°C (–40 to +266°F) |
| Ambient temperature range | –40 to +60 °C (–40 to +140 °F) |
| Sensor housing material | DN 15 to 300 (½ to 12"): AlSi10Mg, coated DN 350 to 600 (14 to 24"): Carbon steel with protective varnish |
| Transmitter housing material | Powder-coated die-cast aluminum |
| Degree of protection | Standard: IP 67 (Type 4X enclosure) for transmitter and sensor Optional: IP 68 (Type 6P enclosure) for remote version of sensor |
| Display/Operation | 2‐line display with push buttons Configuration via local display and operating tools possible |
| Outputs | 4‐20 mA HART (active) Pulse/switch output (passive) |
| Inputs | None |
| Digital communication | HART |
| Power supply | DC 11 to 40 V AC 85 to 250 V (45 to 65 Hz) AC 20 to 28 V (45 to 65 Hz) |
| Hazardous area approvals | FM CSA |
| Product safety | CE, C-tick, EAC marking |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Pressure approvals and certificates | PED |
The Promag P sensor is widely used in various most demanding industries. Combined with the Promag 10 transmitter, which meets basic applications and enables direct integration, Promag 10P is suitable for process applications in the chemical industry and for measuring high-temperature, corrosive media. It is the preferred solution for customers to minimize costs. Promag 10P is available in compact and remote versions.
Benefits
Wide range of applications - various wetted materials available
Energy-saving flow measurement - cross-section identical to the pipe, no pressure loss
Maintenance-free - no moving parts
Economical - designed for simple use and direct integration
Safe operation - display module provides easy-to-read process information
Fully compliant with industry standards - IECE/EN/NAMUR
Application
Bidirectional measuring principle, independent of pressure, density, temperature and viscosity
Designed for measuring corrosive and high-temperature media in chemical and process applications
Device features
Nominal diameter: max. DN 600 (24")
Common process connections
PTFE liner
Two-line display with pushbuttons
Compact or remote version
HART
