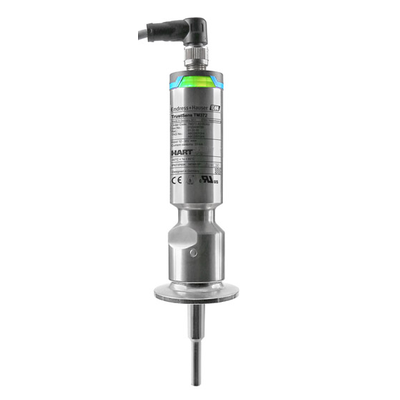

The award-winning intelligent temperature probe integrates a HART® transmitter and Heartbeat Technology and is equipped with the world's first fully automatic in-situ self-calibrating RTD sensor unit. It is suitable for food & beverage and life sciences industry applications and effectively eliminates the risk of undetected non-compliance, shortens downtime and increases product safety and process efficiency. The device fully complies with FDA 21 CFR Part 11 and GMP standards.

Advantages
The self-calibration function and Heartbeat Technology reduce operating risk and costs
Fully automatic, fully traceable online self-calibration means the production process does not need to be interrupted
Fully automatic archiving of records, storage of 350 calibration points.
Calibration certificates can be printed for use as audit documentation.
Automatic 4-20 mA loop testing saves time and increases process safety. Learn how iTHERM TrustSens performs fully automatic loop testing in five simple steps. The video shows the device setup and how your process benefits.
Avoids non-compliance or undetectable faults
International certificates and approvals: ASME BPE, FDA, 3-A, 1935/2004, 2023/2006, 10/2011, CE CRN, CSA general certification
Highest measuring accuracy at the measuring point through sensor-transmitter matching

Application
Specifically designed for hygienic and aseptic applications in the food & beverage and life sciences industries
Measuring range: –40...+160 °C (–40...+320 °F)
Maximum pressure: 50 bar (725 psi)
Protection rating: IP67/68 or IP69K
Communication: 4...20 mA HART® analog output
