The bar stock thermowell thermometer is robust and durable and can form a complete unit with a connection head fitted with a transmitter to meet different application environments and space requirements. The thermometer offers high measuring accuracy and reliability and is available with various process connections, dimensions and materials (e.g. 316L SS and Hastelloy C276) for flexible use in a wide range of applications.

Advantages
FM/CSA XP Cl. I, Div. 1 certified thermometer with the highest safety
One-stop temperature measurement solution. First-class transmitter with integrated sensor for demanding industrial process applications.
Install and use directly after unpacking
Improved electrical isolation (2 kV) when installed on most devices
Simple modular structure: excellent value for money. Easy ordering and reordering. The complete unit with sensor, thermowell and transmitter provides a complete measuring point solution
Long-term stability of all iTEMP® transmitters ≤ 0.05 %/year

Application

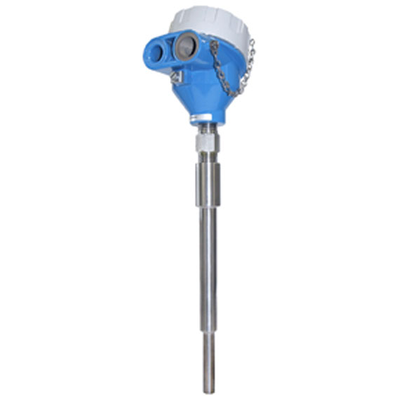

T13 is a resistance thermometer (RTD) installed in a thermowell, certified by FM and CSA, and can be used under harsh conditions and in hazardous areas. The sensor consists of a measuring probe with insulated resistance (RTD) element, a mineral-insulated insert and a bar stock thermowell.
The sensor can be used in the following process industries, e.g.:
Chemical industry
Petrochemical industry
Refineries
Offshore platforms
