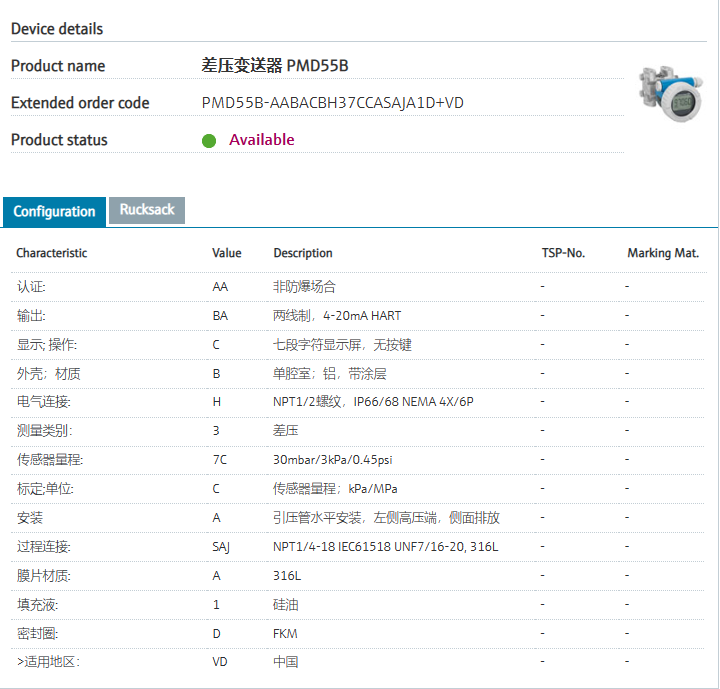

| 订货号 | PMD55B-95D0/0 |
| 扩展订货号 | (PMD55B-AABACBH37CCASAJA1D+VD) |
| 名称 | 差压变送器 PMD55B |
| 基本描述 | Differential pressure, piezoresistive. Differential pressure transmitter. Compact. Application: pressure/level/flow. Metal membrane: welded. :: Modular. :: Easy local or remote operation via Bluetooth (optional). |
| 认证: | |
| AA | 推荐”非防爆场合 |
| 输出: | |
| BA | “推荐”两线制，4-20mA HART |
| 显示; 操作: | |
| C | 七段字符显示屏，无按键/td> |
| 外壳；材质 | |
| B | “推荐”单腔室；铝，带涂层 |
| 电气连接: | |
| H | “推荐”NPT1/2螺纹，IP66/68 NEMA 4X/6P |
| 测量类别： | |
| 3 | “推荐”差压 |
| 传感器量程: | |
| 7C | “推荐”30mbar/3kPa/0.45psi |
| 标定;单位: | |
| C | “推荐”传感器量程；kPa/MPa |
| 安装 | |
| A | 引压管水平安装，左侧高压端，侧面排放 |
| 过程连接: | |
| SAJ | “推荐”NPT1/4-18 IEC61518 UNF7/16-20, 316L |
| 膜片材质: | |
| A | “推荐”316L |
| 填充液: | |
| 1 | “推荐”硅油 |
| 密封圈: | |
| D | “推荐”FKM |
| >适用地区： | |
| VD | 中国 |
