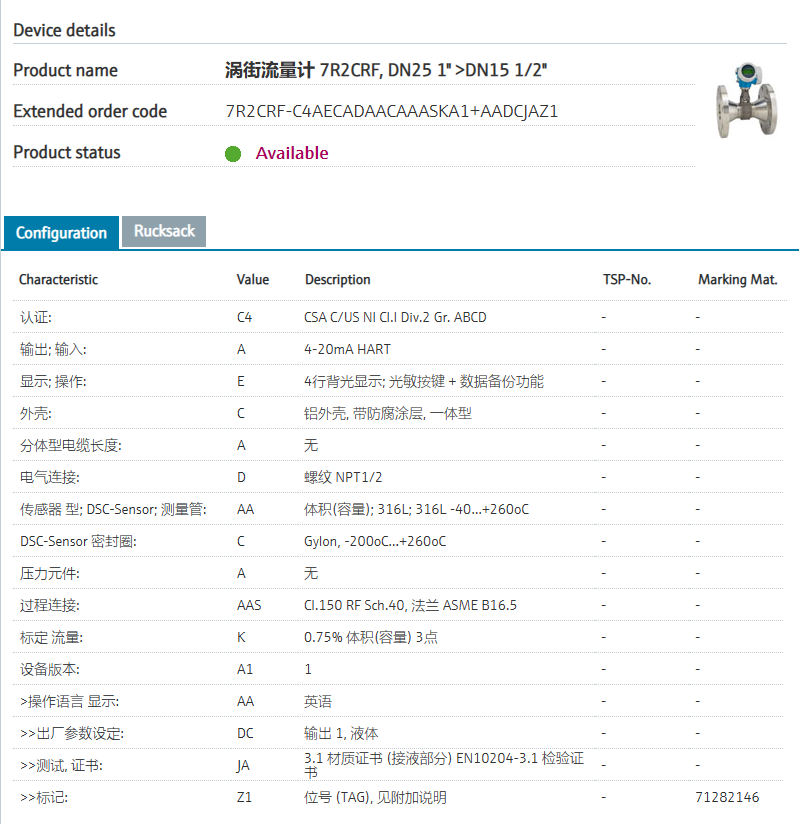

| 订货号 | 7R2CRF-4KD3/0 |
| 扩展订货号 | (7R2CRF-C4AECADAACAAASKA1+AADCJAZ1) |

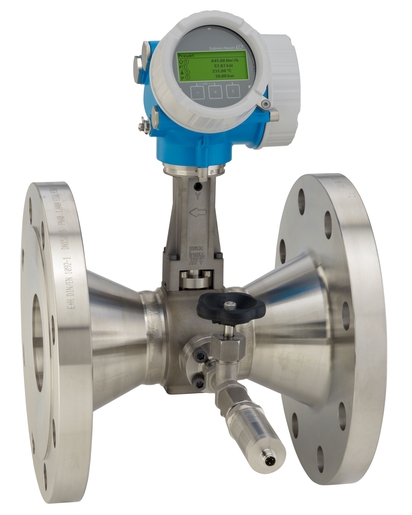

| 名称 | 涡街流量计 R, 7R2CRF, DN25 1" >DN15 1/2" |
| 基本描述 | Vortex flowmeter Inline version. Dedicated to applications with very low or reduced flow. Integrated nominal diameter reduction. Most linear meter body. Automatic recovery of data. Robust dual-compartment housing. :: Same accuracy despite pipe reduction, best-in-class accuracy available (opt.). :: Easy energy management – integrated temperature and pressure measurement for steam and gases. |
| 认证: | |
| C4 | CSA C/US NI Cl.I Div.2 Gr. ABCD |
| 输出; 输入: | |
| A | 4-20mA HART |
| 显示; 操作: | |
| E | 4行背光显示; 光敏按键 + 数据备份功能 |
| 外壳: | |
| C | 铝外壳, 带防腐涂层, 一体型 |
| 分体型电缆长度: | |
| A | 无 |
| 电气连接: | |
| D | 螺纹 NPT1/2 |
| 传感器 型; DSC-Sensor; 测量管: | |
| AA | 体积(容量); 316L; 316L -40...+260oC |
| DSC-Sensor 密封圈: | |
| C | Gylon, -200oC…+260oC |
| 压力元件: | |
| A | 无 |
| 过程连接: | |
| AAS | Cl.150 RF Sch.40, 法兰 ASME B16.5 |
| 标定 流量: | |
| K | 0.75% 体积(容量) 3点 |
| 设备版本: | |
| A1 | 1 |
| >操作语言 显示: | |
| AA | 英语 |
| >>出厂参数设定: | |
| DC | 输出 1, 液体 |
| >>测试, 证书: | |
| JA | 3.1 材质证书 (接液部分) EN10204-3.1 检验证书 |
| >>标记: | |
| Z1 | 位号 (TAG), 见附加说明 |
