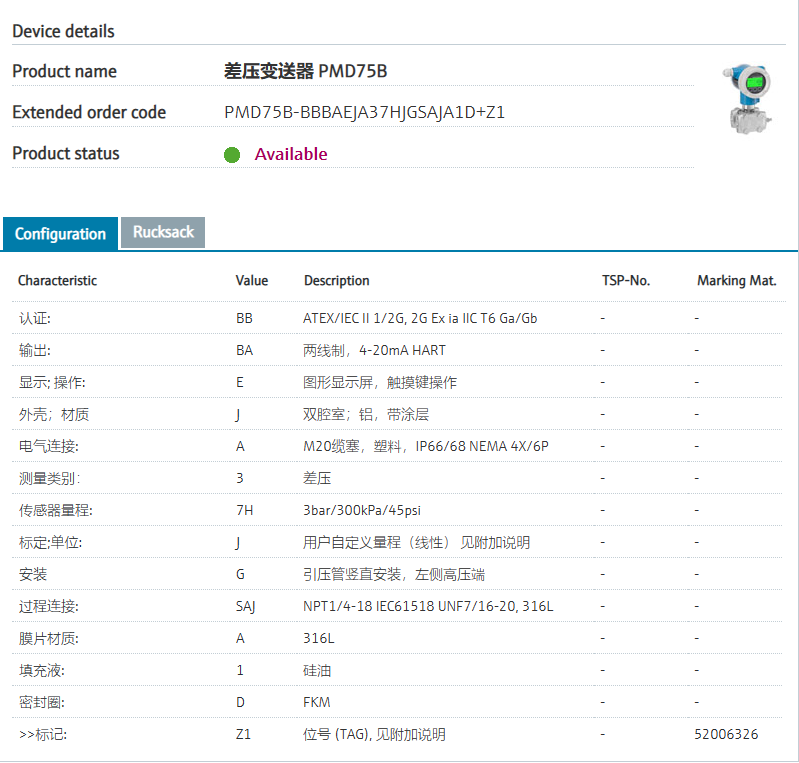

| 订货号 | PMD75B-1M8K4/101 |
| 扩展订货号 | (PMD75B-BBBAEJA37HJGSAJA1D+Z1) |
| 名称 | 差压变送器 PMD75B |
| 基本描述 | Differential pressure, piezoresistive. Differential pressure transmitter. Transmitter. Application: pressure/level/flow. Metal membrane: welded. :: Condition-based maintenance. :: Modular. :: Easy local or remote operation via Bluetooth (optional). |
| 认证: | |
| BB | ATEX/IEC II 1/2G, 2G Ex ia IIC T6 Ga/Gb |
| 输出: | |
| BA | “推荐”两线制，4-20mA HART |
| 显示; 操作: | |
| E | 图形显示屏，触摸键操作 |
| 外壳；材质 | |
| J | “推荐”双腔室；铝，带涂层 |
| 电气连接: | |
| A | “推荐”M20缆塞，塑料，IP66/68 NEMA 4X/6P |
| 测量类别： | |
| 3 | “推荐”差压 |
| 传感器量程: | |
| 7H | “推荐”3bar/300kPa/45psi |
| 标定;单位: | |
| J | 用户自定义量程（线性） 见附加说明 |
| 安装 | |
| G | “推荐”引压管竖直安装，左侧高压端 |
| 过程连接: | |
| SAJ | “推荐”NPT1/4-18 IEC61518 UNF7/16-20, 316L |
| 膜片材质: | |
| A | “推荐”316L |
| 填充液: | |
| 1 | “推荐”硅油 |
| 密封圈: | |
| D | “推荐”FKM |
| >>标记: | |
| Z1 | 位号 (TAG), 见附加说明 |
