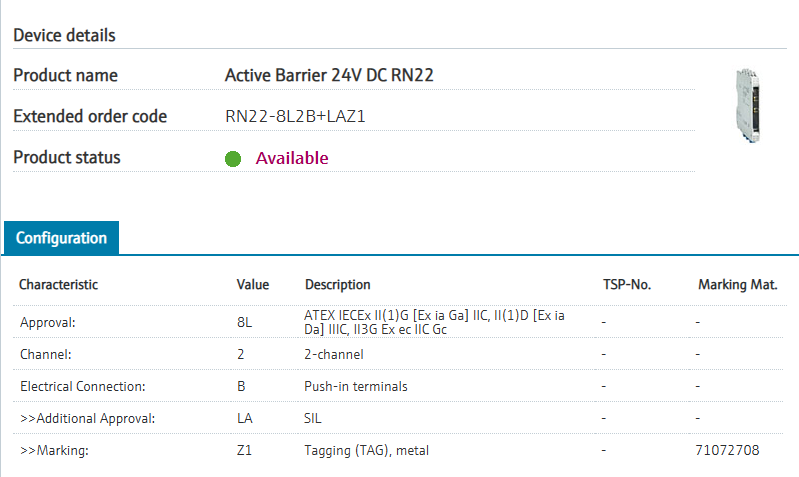

| 订货号 | RN22-15F3/0 |
| 扩展订货号 | (RN22-8L2B+LAZ1) |
| 名称 | Active Barrier 24V DC RN22 |
| 基本描述 | Loop power supply, 0/4-20mA. 1:1 transmission, HART transparency. Housing 12.5mm, IP20. ::Input, output active/passive usable. ::Optional up to SIL2 SC3 acc. IEC61508. ::Optional with DIN rail bus connector |
| Approval: | |
| 8L | ATEX IECEx II(1)G [Ex ia Ga] IIC, II(1)D [Ex ia Da] IIIC, II3G Ex ec IIC Gc |
| Channel: | |
| 2 | 2-channel |
| Electrical Connection: | |
| B | Push-in terminals |
| >>Additional Approval: | |
| LA | SIL |
| >>Marking: | |
| Z1 | Marking: 71072708: 金属铭版 |
相关型号
| 型号 | 名称 |
|---|---|
| RN22-8L2BLAZ1 | 有源安全栅 |
