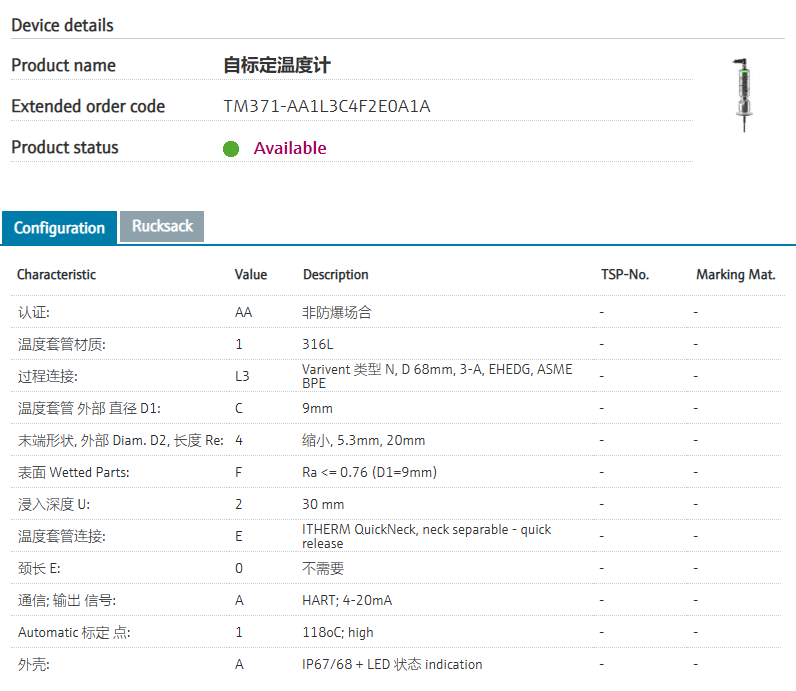

| 订货号 | TM371-21M5/142 |
| 扩展订货号 | (TM371-AA1L3C4F2E0A1A) |
| 名称 | 自标定温度计 |
| 基本描述 | Self-calibrating thermometer with optional thermowell for applications in the food/beverages and pharmaceutical industries. 100% compliance by 0% effort. Measuring range: -40...+160oC/ -40...+320oF, optional up to 190oC/374oF. ::Risk reduction and cost reduction through a fully automated inline self-calibration. ::Fully automatized and audit-proof documentation. ::No risk of undetected failures through Heartbeat monitoring. |
| 认证: | |
| AA | 非防爆场合 |
| 温度套管材质: | |
| 1 | 316L |
| 过程连接: | |
| L3 | Varivent 类型 N, D 68mm, 3-A, EHEDG, ASME BPE |
| 温度套管 外部 直径 D1: | |
| C | 9mm |
| 末端形状, 外部 Diam. D2, 长度 Re: | |
| 4 | 缩小, 5.3mm, 20mm |
| 表面 Wetted Parts: | |
| F | Ra <= 0.76 (D1=9mm) |
| 浸入深度 U: | |
| 2 | 30 mm |
| 温度套管连接: | |
| E | ITHERM QuickNeck, neck separable - quick release |
| 颈长 E: | |
| 0 | 不需要 |
| 通信; 输出 信号: | |
| A | HART; 4-20mA |
| Automatic 标定 点: | |
| 1 | 118oC; high |
| 外壳: | |
| A | IP67/68 + LED 状态 indication |
相关型号
| 型号 | 名称 |
|---|---|
| TM371-AA1L3C4F2E0A1A | 配备自标定功能的温度计 |
