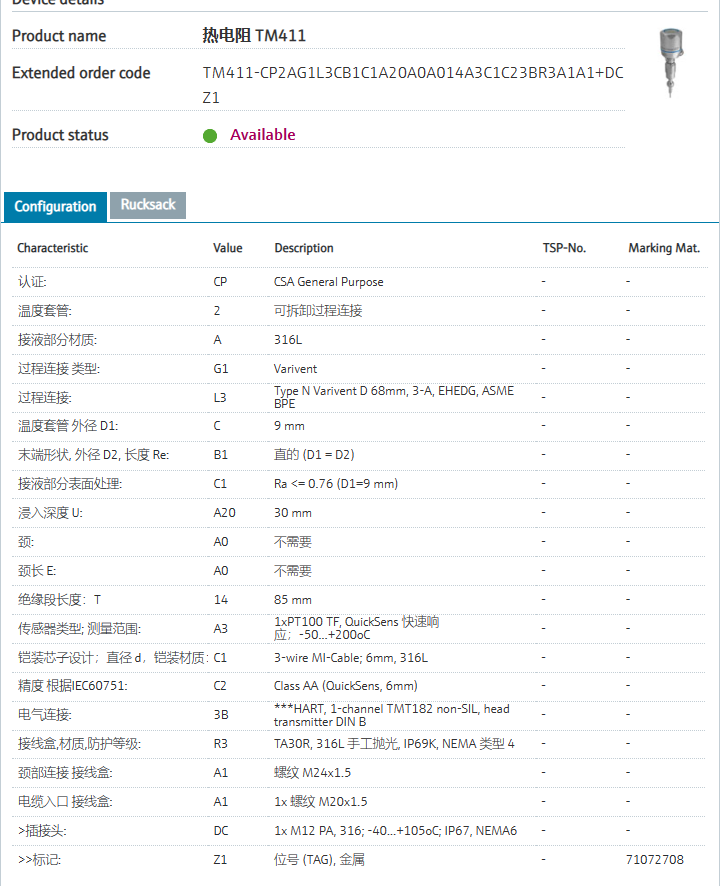

| 订货号 | TM411-5FFH3/101 |
| 扩展订货号 | (TM411-CP2AG1L3CB1C1A20A0A014A3C1C23BR3A1) |
| 名称 | 热电阻 TM411 |
| 基本描述 | Modular hygienic resistance thermometer. Metrical version with exch. insert for applications in the food/beverages and pharmaceutical industries. With or w/o thermowell. Measuring range: -200...+600oC / -328...1.112oF (depending on the configuration). ::Fastest response times for optimal process control through iTHERM QuickSens insert. ::Maximum robustness for highest process safety through iTHERM StrongSens insert. ::Cost savings with recalibrations through iTHERM QuickNeck coupling. |
| 认证: | |
| CP | CSA General Purpose |
| 温度套管: | |
| 2 | 可拆卸过程连接 |
| 接液部分材质: | |
| A | 316L |
| 过程连接 类型: | |
| G1 | Varivent |
| 过程连接: | |
| L3 | Type N Varivent D 68mm, 3-A, EHEDG, ASME BPE |
| 温度套管 外径 D1: | |
| C | 9 mm |
| 末端形状, 外径 D2, 长度 Re: | |
| B1 | 直的 (D1 = D2) |
| 接液部分表面处理: | |
| C1 | Ra <= 0.76 (D1=9 mm) |
| 浸入深度 U: | |
| A20 | 30 mm |
| 颈: | |
| A0 | 不需要 |
| 颈长 E: | |
| A0 | 不需要 |
| 绝缘段长度：T | |
| 14 | 85 mm |
| 传感器类型; 测量范围: | |
| A3 | 1xPT100 TF, QuickSens 快速响应；-50...+200oC |
| 铠装芯子设计；直径 d，铠装材质： | |
| C1 | 3-wire MI-Cable; 6mm, 316L |
| 精度 根据IEC60751: | |
| C2 | Class AA (QuickSens, 6mm) |
| 电气连接: | |
| 3B | HART,1-channelTMT182 non-SlL headtransmitter DIN B |
| 接线盒,材质,防护等级: | |
| R3 | TA30R, 316L 手工抛光, IP69K, NEMA 类型 4 |
| 颈部连接 接线盒: | |
| A1 | 螺纹 M24x1.5 |
| 电缆入口 接线盒: | |
| A1 | 1x 螺纹 M20x1.5 |
| >缆塞: | |
| C1 | 1x 聚酰胺; -40...+100oC; IP68 |
