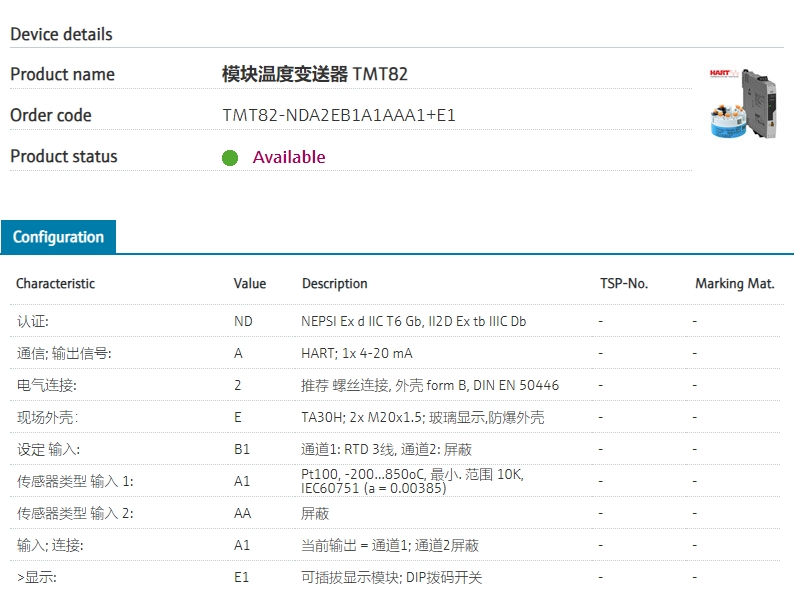

| 订货号 | TMT82-13F63/125 |
| 扩展订货号 | (TMT82-NDA2EB1A1AAA1+E1) |
| 名称 | 模块温度变送器 TMT82 |
| 基本描述 | 2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Presetting failure current high. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508. |
| 认证: | |
| BD | NEPSI Ex d IIC T6 Gb, II2D Ex tb IIIC Db |
| 通信; 输出信号: | |
| A | HART; 1x 4-20 mA |
| 电气连接: | |
| 2 | 推荐 螺丝连接, 外壳 form B, DIN EN 50446 |
| 现场外壳： | |
| E | TA30H; 2x M20x1.5; 玻璃显示,防爆外壳 |
| 设定 输入: | |
| B1 | 通道1: RTD 3线, 通道2: 屏蔽 |
| 传感器类型 输入 1: | |
| A1 | Pt100, -200...850oC, 最小. 范围 10K, IEC60751 (a = 0.00385) |
| 传感器类型 输入 2: | |
| AA | 屏蔽 |
| 输入; 连接: | |
| A1 | 当前输出 = 通道1; 通道2屏蔽 |
| >>其他认证: | |
| E1 | 可插拔显示模块; DIP拨码开关 |
