SenTix® 60-62 pH Electrodes
Liquid Electrolyte - Platinum Wire Junction - Cone
SenTix® 60, 61, 62: Precision electrodes with liquid electrolyte for pH measuerments in lab applications
| Varianten | ||||
| Order-No. | Name | Attributes | ||
| 103639 | SenTix® 60 | S7 plug head, without cable | ||

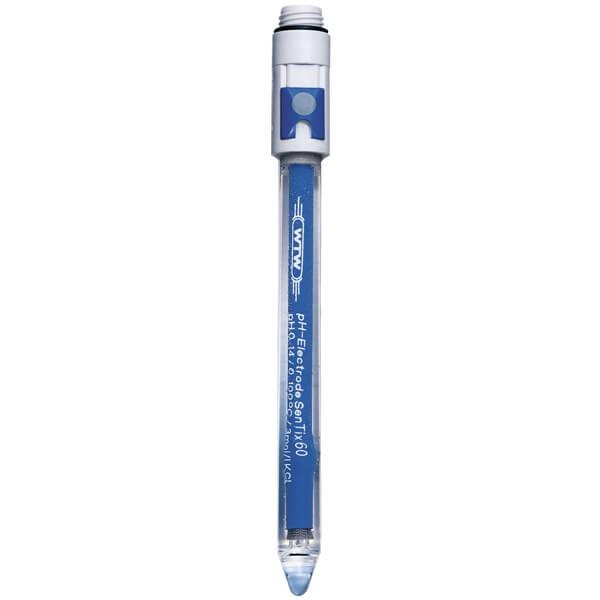

| 103640 | SenTix® 61 | 1 m fixed cable with water-proof DIN | ||
| 103641 | SenTix® 62 | 1 m fixed cable with BNC | ||
Highlights:
- Excellent electrolyte flow without clogging by platinum wire junction
- Fast response with liquid reference system
- Optimum results thanks to high-quality membrane glass
- Cone shape
SenTix® 60-62 electrodes with 3 mol/l KCl electrolyte are designed for demanding measurements in the laboratory. With there easy to clean glass shaft and their platinum wire junction they can be used also in difficult samples. The temperature compensation is set manually or with an external temperature sensor.
-
SenTix® 60 61 62 Order no. 103639 103640 103641 Membrane shape Cone Shaft Glass Diaphragm Platinum wire Temp. sensor - Reference electrolyte KCl 3 mol/l Ag+ free Membrane resistance <600 MΩ Measuring range 0 … 14 pH Temp. range 0 … 100 °C Shaft length 120 mm Shaft diameter 12 mm Connection S7 plug head, without cable 1 m fixed cable with water-proof DIN 1 m fixed cable with BNC
