705 IQ

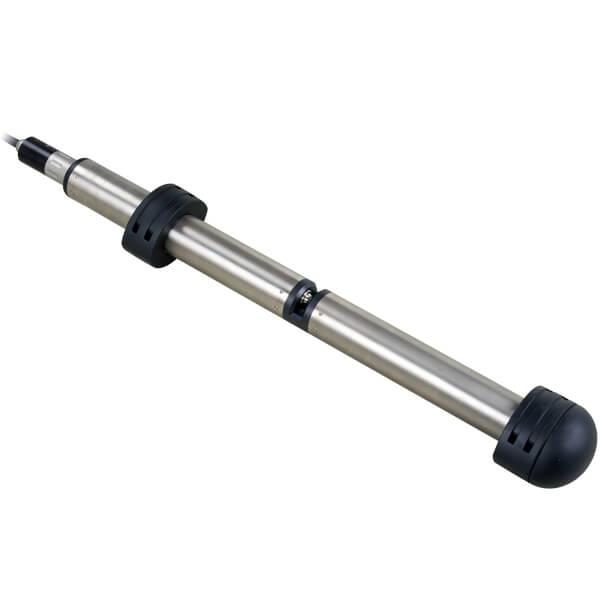

Name: 481052 NiCaVis 705 IQ
Brand: WTW
SKU: 481052
Availability: InStock

WTW 481052

Spectral UV-VIS sensor (60 mm) for measurement of Nitrate, CODtotal, CODsoluble, TOC, BOD, DOC, SACtotal, SACsoluble, and UVT254 , for measurement in the effluent of municipal wastewater treatment plants, with integrated ultrasonic cleaning. Supplied with multifunctional slide and Shock-Absorption-Rings, without connection cable (SACIQ order separately). 光谱UV-VIS传感器（60 mm），用于测量硝酸盐、总二氧化碳、可溶二氧化碳、总有机碳、生化需氧量、溶解有机碳、可溶氯化碳和紫外线254，用于测量城市污水处理厂的污水，并集成超声波清洗。配备多功能滑块和减震环，无需连接电缆（SACIQ单独订购）。

获取报价返回列表

Digital, optical sensor for the IQ SENSOR NET
NiCaVis® 705 IQ: Sensor with integrated ultrasonic cleaning for the reagent-free measurement of nitrate, carbon parameters and TSS in the wastewater treatment system drain:
•Reagent-free measurement of NO3, COD, BOD, TOC, DOC, SAC, UVT, TSS
•No wear parts
•Extremely robust thanks to titanium and PEEK
The optical measuring method of these sensors allows continuous measuring of carbon and nitrogen parameters and suspended solids directly in the medium. With this procedure, the information of the entire spectrum is evaluated, which allows the simultaneous determination of multiple parameters. At the same time, cross sensitivities of individual parameters among each other and interference such as turbidty are eliminated.

Model		NiCaVis^® 705 IQ	NiCaVis^® 705 IQ TS
Order No.		481052	481053
* The UVT-254 value is standardized to 10 mm gap width.
Measuring method		Spectral Measurement in the UV-VIS Range (200 – 720 nm)
Measuring gap (optical layer thickness)		5 mm
Application (optimized for)		Municipal wastewater:	Municipal wastewater:
Measuring range and Resolution		Effluent:	Effluent:
	NO₃	0.0 ... 250.0 mg/l 0.1 mg/l	0.0 ... 250.0 mg/l 0.1 mg/l
	NO₃-N	0.00 ... 50.00 mg/l 0.01 mg/l	0.00 ... 50.00 mg/l 0.01 mg/l
	COD	0.0 ... 800.0 mg/l 0.1 mg/l	0.0 ... 800.0 mg/l 0.1 mg/l
	TOC	0.0 ... 500.0 mg/l 0.1 mg/l	0.0 ... 500.0 mg/l 0.1 mg/l
	DOC	0.0 ... 500.0 mg/l 0.1 mg/l	0.0 ... 500.0 mg/l 0.1 mg/l
	BOD	0.0 ... 500.0 mg/l 0.1 mg/l	0.0 ... 500.0 mg/l 0.1 mg/l
	SAC_{254 total}	0.0 ... 600.0 1/m 0.1 1/m	0.0 ... 600.0 1/m 0.1 1/m
	SAC_{254 dissolv}	0.0 ... 600.0 1/m 0.1 1/m	0.0 ... 600.0 1/m 0.1 1/m
	UVT_{254 total}*	0.0 ... 100.0 % 0.1 %	0.0 ... 100.0 % 0.1 %
	UVT_{254 dissolv}*	0.0 ... 100.0 % 0.1 %	0.0 ... 100.0 % 0.1 %
	TSS		0.0 ... 900.0 mg/l 0.1 mg/l
Flow rate		≤ 3 m/s
Pressure Resistance		Maximum 1 bar (incl. sensor connection cable)
Electrical connections		2-wire shield cable with quick fastener to sensor
Electromagnetic Compatibility		EN 61326, Class B, FCC Class A Intended for indispensable operation
Certifications		CE
Mechanical		Housing: Titan Grade 2, PEEK Window: Sapphire glass Protection class: IP 68
Weight (without cable)		Approx. 8.82 lb (4 kg)
Warranty		2 years for defects in quality
