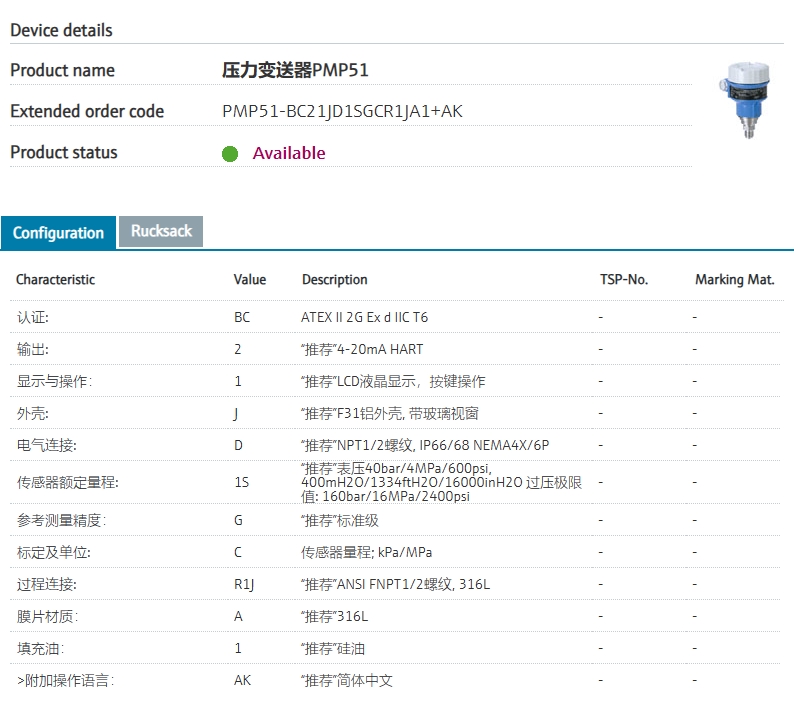

| 订货号 | PMP51-2C7T0/0 |
| 扩展订货号 | (PMP51-BC21JD1SGCR1JA1+AK) |
| 名称 | 压力变送器PMP51 |
| 基本描述 | Measurement: Pressure, piezoresistive. compact. Application: pressure, level. Membrane: Metal, welded. :: Easiest on-site operation. :: Modular. |
| 认证: | |
| BC | ATEX II 2G Ex d IIC T6 |
| 输出: | |
| 2 | “推荐”4-20mA HART |
| 显示与操作： | |
| 1 | “推荐”LCD液晶显示，按键操作 |
| 外壳: | |
| J | “推荐”F31铝外壳, 带玻璃视窗 |
| 电气连接: | |
| D | “推荐”NPT1/2螺纹, IP66/68 NEMA4X/6P |
| 传感器额定量程: | |
| 1S | 推荐”表压40bar/4MPa/600psi, 400mH2O/1334ftH2O/16000inH2O 过压极限值: 160bar/16MPa |
| 参考测量精度： | |
| G | “推荐”标准级 |
| 标定及单位: | |
| C | 传感器量程; kPa/MPa |
| 过程连接: | |
| R1J | 推荐”ANSI FNPT1/2螺纹, 316L |
| 膜片材质： | |
| A | “推荐”316L |
| 填充油： | |
| 1 | “推荐”硅油 |
| >附加操作语言： | |
| AK | “推荐”简体中文 |
