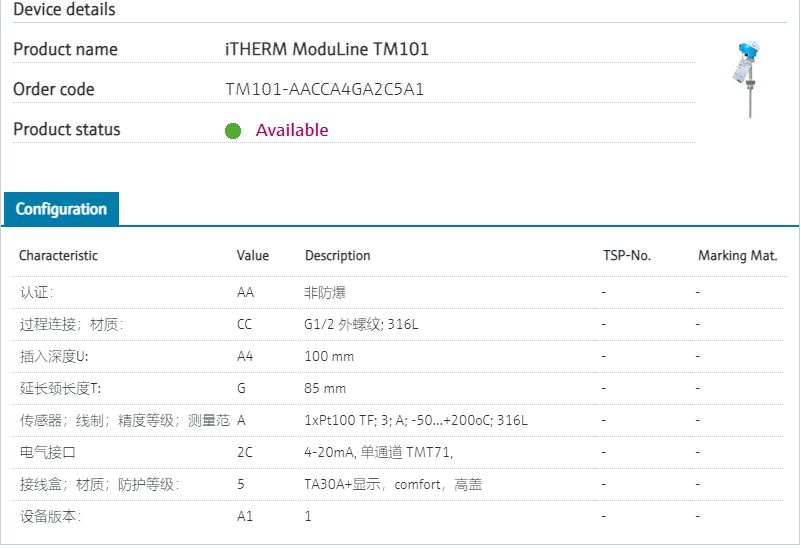

| 订货号 | TM101-1AX1/115 |
| 扩展订货号 | (TM101-AACCA4GA2C5A1) |
| 名称 | 温度计 TM101 |
| 基本描述 | Modular thermometer with resistance sensor or thermocouple w/o thermowell for direct process contact. Metrical version with non-exchangeable insert for low demanding applications in a high variety of industries. Thermometer insert in direct contact to process. Measuring range: -50...+650oC/ -58...+1.202oF (depending on the configuration). Material in direct contact with process: 316L, Alloy600. |
| 认证： | |
| AA | 非防爆 |
| 过程连接；材质： | |
| CC | G1/2 外螺纹; 316L |
| 插入深度U: | |
| A4 | 100 mm |
| 延长颈长度T: | |
| G | 85 mm |
| 传感器；线制；精度等级；测量范围；材质： | |
| A | 1xPt100 薄膜式; 3-线; A; -50...+200oC; 316L |
| 电气接口 | |
| 2C | 4-20mA, 单通道 TMT71, 模块变送器DIN B |
| 接线盒；材质；防护等级： | |
| 5 | TA30A，带显示，标准型表盖带铰链；铸铝；IP66/68 |
| 设备版本： | |
| A1 | 1 |
