伺服罐表
Technical Data
CompareContinuous / Liquids
| Measuring Principle | Servo / Float Tank Gauging |
| Characteristic / Application | Servo Tank Gauging: High precision measurement for liquid level, interface, spot density, profile density |
| Specialities | Custody transfer level measurement Interface measurement Spot density, density profile measurement |
| Supply / Communication | 85-264VAC 52-74VAC 19-64VDC |
| Accuracy | up to 0.4 mm |
| Ambient temperature | Standard: -40°C…60°C (-40°F...140°F) For calibration to regulatory standards: -25°C…55°C (-13°F...131°F) |
| Process temperature | -200°C...200°C (-328°F...392°F) |
| Process pressure / max. overpressure limit | 0,2...6 bar abs |
| Main wetted parts | 316L, AlloyC276, PTFE |
| Process connection | Flange: DN80/3" / DN150/6" |
| Max. measurement distance | 36 m (118 ft) |
| Communication | Outputs: Fieldbus: Modbus RS485, V1, WM550 HART, BPM and TRL/2 (via GE option) Analog 4-20mA output (Exi/ Exd) Relay output (Exd) Inputs: Analog 4-20mA input (Exi/ Exd) 2-, 3-, 4-wire RTD input Discrete input (Exd, passive/ active) |
| Certificates / Approvals | ATEX, FM, IEC Ex, EAC, JPN Ex, KC Ex, INMETRO, NEPSI |
| Safety approvals | Overfill protection WHG SIL |
| Metrological approvals and certificates | OIML, NMi, PTB, LNE Calibration performed on accredited calibration facilities (acc.to ISO/IEC 17025) |
| Options | Redundant fieldbus Weather protection cover Guide wire assembly Relief valve Gas purging nozzle connection Pressure gauge Cleaning nozzle connection |
| Application limits | Stilling well or guide wires for turbulent application Recommend PTFE displacer for high viscosity application Recommend AlloyC276 displacer for corrosive application Interface measurement requires min. difference of 0.100 g/ml between layers |
Density
| Measuring Principle | Servo / Float Tank Gauging |
| Characteristic / Application | Servo Tank Gauging: High precision measurement for liquid level, interface, spot density, profile density |
| Supply / Communication | 85-264VAC |
| Ambient temperature | Standard: -40°C…60°C (-40°F...140°F) For calibration to regulatory standards: -25°C…55°C (-13°F...131°F) |
| Process temperature | -200°C...200°C (-328°F...392°F) |
| Process pressure | 0.2...6 bar abs |
| Wetted parts | 316L, AlloyC276, PTFE |
| Output | Outputs: Fieldbus: Modbus RS485, V1, HART Analog 4-20mA output (Exi/ Exd) Relay output (Exd) Inputs: Analog 4-20mA input (Exi/ Exd) 2-, 3-, 4-wire RTD input Discrete input (Exd, passive/ active) |
| Certificates / Approvals | ATEX, FM, IEC Ex, NEPSI, EAC |
| Options | Weather protection cover Guide wire assembly Relief valve Gas purging nozzle connection Pressure gauge Cleaning nozzle connection |
| Specialities | Custody transfer level measurement Interface measurement Spot density, density profile measurement |
| Measuring range | 36 m (118 ft) |
| Other approvals and certificates | OIML, NMi, PTB |

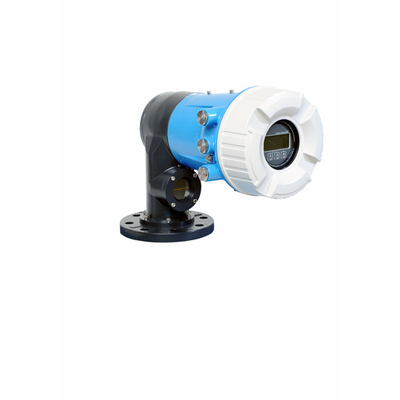

The Proservo NMS80 intelligent tank gauge can perform high-precision level measurement in custody transfer and inventory control applications and is certified by NMi and PTB. It complies with the relevant requirements of OIML R85 and API 3.1B. It meets the strict requirements of tank farm inventory management and loss control and has been optimized for total cost savings and safe operation.
Advantages
Hardware and software design in accordance with IEC 61508, maximum safety SIL3 (in homogeneous redundant systems)
Maximum measuring accuracy of ±0.4 mm (±0.02"), therefore maximum reliability
Design complies with international metrology regulations, e.g. OIML R85 and API MPMS standards
Local and national certifications, e.g. NMi or PTB certification for custody transfer applications
Simple connection to higher-level DCS systems via open protocols, easy installation and trouble-free operation
Can measure up to three interfaces, tank bottom, single-point temperature and density gradient
Application
High-precision custody transfer measurement of crude oil, gasoline, diesel, petroleum and chemicals.
Process connection: flange
Temperature: -200...+200°C (-328...+392°F)
Pressure: 0...+6 bar (0...+87 psi)
Maximum measuring range: 36 m (118 ft)
Measuring accuracy: ±0.4 mm (±0.02")
International explosion protection and custody transfer certification, WHG overfill protection, SIL certification
Technical documentation
Technical data
Documents/Manuals/Software
Accessories/Spare parts
Source:Endress+Hauserwebsite public information
