Technical Data
CompareAnalyser
| Measuring Principle | UV photometric |
| Characteristic | Process analyzer for total nitrogen in aqueous solutions UV photometric method following HJ636-2012 |
| Size | Housing (open version): 793 x 530 x 417 mm 31.22 x 20.87 x 16.42 in Housing (closed version): 793 x 530 x 463 mm 31.22 x 20.87 x 18.23 in Housing with base: 1723 x 530 x 463 mm 67.83 x 20.87 x 18.23 in |
| Design | Open design, cabinet and stand housing High-Performance plastic ASA-PC, additional stand coated steel |
| Process temperature | 4 to 40 °C (39.2 to 104 °F) |
| Ambient temperature | 5 to 40 °C (41 to 104 °F) |
| Process pressure | At atmospheric pressure, < 0.2 bar |
| Sample flow rate | Min. 15 ml/min (0.51 fl.oz/min) |
| Consistency of the sample | Aqueous, homogeneous |
| Application | Monitoring of wastewater treatment plant outlet Monitoring of the surface water quality Monitoring of industrial water treatment Monitoring and optimization of industrial wastewater treatment plants |
| Power supply | 100 to 120 VAC / 200 to 240 VAC ± 10% 50 ± 1 or 60 ± 1,2 Hz |
| Output / communication | 2x 0/4 to 20 mA Modbus RS485/TCP (optional) Webserver (optional) Ethernet/IP Profibus DP Alarm relay |
| Input | 1 measuring channel 1 to 4 digital sensor inputs for sensors with Memosens protocol (optional) |
| Measuring range | 0 to 20 mg/l N 0 to 50 mg/l N 0 to 250 mg/l N |
| Consumables | Reagents and standard solutions CY80TN as well as cleaner CY800 are necessary for the operation Regular maintenance is done with the parts of the maintenance kit CAV880 |
Application areas
Total nitrogen is a key indicator for determining surface water quality and assessing the impact of wastewater discharges. Total nitrogen comprises the organic and inorganic nitrogen present in the water. A rise in the total nitrogen concentration in surface water indicates that it may be affected by sewage from pipe networks, landfill leachate or agricultural non-point source pollution.

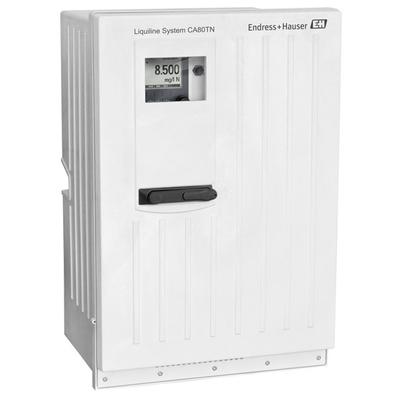

The Liquiline System CA80TN total nitrogen analyzer performs highly accurate online total nitrogen measurement, safeguarding process safety. The analyzer features advanced diagnostics, supports remote access, and its archived records can be submitted directly to the authorities as documentary evidence.
The Liquiline System total nitrogen analyzer monitors organic nitrogen compounds (e.g. proteins, urea) and inorganic nitrogen compounds (e.g. nitrate, nitrite, ammonia nitrogen) and is suitable for the following applications:
Inlet and outlet of wastewater treatment plants, for archiving records and calculating purification capacity
Discharge from industrial wastewater treatment plants, for determining discharge fees, as the basis of the “polluter pays principle”
Monitoring surface water quality
Advantages
Complies with the national standard HJ636 “Water quality - Determination of total nitrogen - Alkaline potassium persulfate digestion UV spectrophotometric method”; the measuring results are fully consistent with laboratory results.
Robust and durable: titanium reactor with sapphire window for a long service life.
Flexible to use: built-in dilution unit providing a wide measuring range.
Fast process integration: self-priming analyzer can be used directly and safely; the analyzer with Y-type pretreatment is connected in series in a bypass line.
Simple addition of modules and connection of Memosens digital sensors for easy upgrading to a complete measuring station.
