Technical Data
CompareAnalyser
| Measuring Principle | UV photometric |
| Characteristic | Insitu (immersion in process), extractive with sample and flow cell Optical photometric sensor for nitrate and SAC |
| Size | 388 / 394 mm x 40 mm, depends on version |
| Design | 40 mm sensor, stainless steel 316L |
| Process temperature | 5 to 50°C (41 to 120 °F) |
| Ambient temperature | -20 to 60 °C (-4 to 140 °F) |
| Specials | G1, NPT3/4 IP68 (1m/3,3ft) water column with 1N KCl during 60d ays |
| Application | Drinking water, biological waste wate process, WWTP effluent Monitoring of surface water |
| Measuring range | 0.01 to 20 mg/l / 0.1 to 50 mg/l NO3-N 0.04 to 80 mg/l / 0.4 to 200 mg/l NO3 0 to 50 1/m / 0 to 250 1/m / 0 to 1000 1/m SAC 0 to 75 mg/l / 0 to 375 mg/l / 0 to 1500 mg/l COD/BOD (254nm) 0 to 30 mg/l / 0 to 150 mg/l / 0 to 600 mg/l TOC/DOC (254nm) |

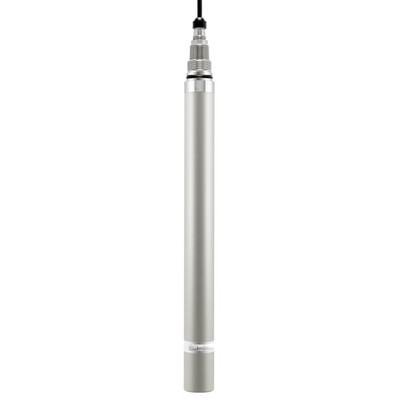

The Viomax CAS51D is an intelligent nitrate and spectral absorption coefficient (SAC) sensor that can perform unattended operation under various process conditions. Simply immerse the sensor in the process to measure. The sensor has a uniquely robust design and a self-cleaning function that ensures low maintenance requirements. Using Memosens digital technology, the CAS51D also offers maximum process and data integrity and is easy to operate. Laboratory calibration and device predictive maintenance are possible.
Advantages
Economical measuring method: no chemical reagents, safe, environmentally friendly and cost-saving
Extremely short response time: the sensor processes the measured values and provides reliable real-time process information
Fast and simple commissioning: the sensor is pre-calibrated and preset at the factory
Unattended operation: intelligent design and automatic air cleaning function increase utilization and reduce maintenance
Perfect for open basin measurement: Flexdip CYH112 holder and CYA112 mounting bracket for fast and flexible sensor installation
Perfect for pipe measurement: various flow assemblies for convenient pipe installation
Areas of application
The Viomax CAS51D is used for nitrate or SAC measurement in drinking water, process water, wastewater and utility sections:
Organic content or nitrate at inlet and outlet
CODeq or TOCeq determination
Monitoring, control and optimization during treatment
Nitrate monitoring in aeration basins and denitrification processes
E+H Product Configurator
Please enter the product order code to configure
Product comparison
Please enter the order codes of the products to compare in the boxes below (up to three products)
Technical documentation
Technical data
Documents/Manuals/Software
Accessories/Spare parts
A
Source:Endress+Hauserwebsite public information
Related Models
| Model | Name |
|---|---|
| CAS51D-AAA1A3 | 硝酸盐/COD/光谱吸收系数(SAC)传感器 |
| CAS51D-AAA2A3 | 硝酸盐/COD/光谱吸收系数(SAC)传感器 |
| CAS51D-AAC1A3 | 硝酸盐/COD/光谱吸收系数(SAC)传感器 |
| CAS51D-AAC2A2 | 硝酸盐/COD/光谱吸收系数(SAC)传感器 |
| CAS51D-AAC2A3 | 硝酸盐/COD/光谱吸收系数(SAC)传感器 |
| CAS51D-AAC3A3 | 硝酸盐/COD/光谱吸收系数(SAC)传感器 |
